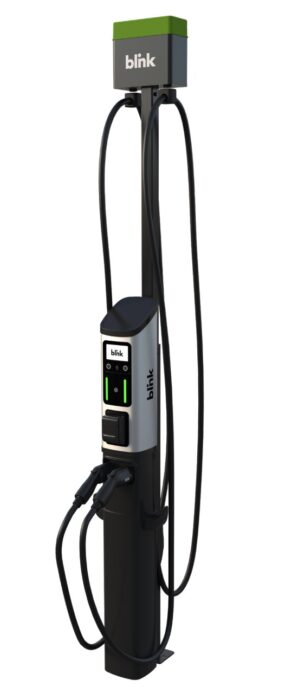

Series 8 (ISO Model)
80A L2 EV Charging Station with Credit Card Reader PLUS Wi-Fi,
Ethernet, and Cellular Connection Capability
Enhance your business’s EV charging capabilities with the versatile Blink Series
8 ISO model. Featuring an integrated credit card reader, adjustable power, and
ISO 15118 hardware readiness, it is suitable for a wide range of applications.
The Blink Series 8 dual-port ISO model features an integrated
credit card reader, is configurable up to 80A via a built-in
derating switch, and can be connected via Wi-Fi, ethernet, or
cellular. This charger is ISO 15118 hardware-ready, and features
a modern and compact design with a terminal block for effortless
installation. An optional cable management system keeps the
cables clean and tidy for drivers, offering customers a full sleek
EV charging solution to meet their business needs.
Benefits
- Dual-port design
- Payment options: Google Pay, Apple Pay, RFID cards, all major credit cards, and Tap to Pay
- Rugged aluminum enclosure for durability
- Configurable up to 80A max via built-in derating switch
- Seamless data communication: Wi-Fi, built-in Ethernet port, and 4G LTE cellular
- Sleek and compact head unit, pedestal, and cable management system
- New terminal block supporting #2 AWG input cabling for simple installation
- ISO 15118 hardware-ready
- Easy-to-read LCD screen for clear charging session information
- Universal J1772 and NACS connectors for compatibility with all electric and plug-in electric hybrid vehicles*
- Bright status LED indicator lights
- Pedestal and wall mount options for flexible installation
ELECTRICAL SPECIFICATION – AC OUTPUT
| Electrical Specification - AC Output | |
|---|---|
| Number of Ports | Two |
| Current | Configurable up to 80A per port |
| Power | Up to 19.2kW (@240VAC) or 16.64kW (@208VAC) max per port |
| Energy Metering Accuracy | +/- 1% |
| Charging Connector | J1772 or NACS |
| Electrical Specification - AC Input | |
|---|---|
| Input Connector | Hardwired |
| Voltage | 208/240 VAC |
| Service Panel Breaker | 2x 100A max (depending on output configuration) |
| Power Connection | Line 1, Line 2, and Ground (no Neutral) per port |
| Standy Power | 4.6W per port |
| Safety Specification | |
|---|---|
| Ground Fault Circuit Interrupt | 20mA CCID with auto-retry |
| Automatic Plug- Out Detection | Power terminated per SAE J1772 spec |
| Surge Protection | 6kV @ 3,000A |
| Functional Specification | |
|---|---|
| Connectivity | Cellular 4G LTE, Wi-Fi, Ethernet |
| Backend Protocol | OCPP 1.6J compliant |
| Remote Management | Remote access, diagnostics, Over-the-Air (OTA) software update enabled |
| Load Management | Smart, dynamic allocation and distribution of power to each port |
| USER INTERACTION SPECIFICATION | |
|---|---|
| Charging Status Indicator | High-visibility, multi-color visual status indication |
| Display | 4.3” color LCD screen, 480x272 |
| Authentication | RFID: ISO14443 Type A & B, MiFare, Felica, ISO15693 NFC: Apple VAS, NEMA, Google Smart Tap Plug and Charge: ISO 15118 ready |
| Payment | RFID card, Mobile app Optional: Apple/Google Pay, Contactless/Magnetic/EMV Credit Card |
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Enclosure | Aluminum, UL Type 3R |
| Operating Humidity | Up to 95% non-condensing |
| Operating Temperature | -30 degrees C to +50 degrees C |
| Operating Altitude | <=6560 ft |
| MECHANICAL SPECIFICATION | |
|---|---|
| Dimensions | Head Unit: 22.5” H x 7.4” W x 9.7” D Pedestal: 35” H x 12.5” W x 8.1” D Wall Mount: 14.7” H x 8.6” W x 7.7” D |
| Approximate Weights | Head Unit: 44.7 lbs Pedestal: 24.2 lbs Wall Mount: 16.3 lbs |
| Mounting Option | Wall or Pedestal mount |
| Cable Length | 23 ft |
| Cable Management System | Optional |
| REGULATION | |
|---|---|
| Safety | UL 2594 / CSA C22.2 No. 280-16, UL 2231-1 / CSA C22.2 No. 281.1-12, UL 2231-2 / CSA C22.2 No. 281.2-12 certified |
| EMI | FCC Part 15 Class A Compliant |
| Energy Efficiency | Energy Star Certified |
| Compliance | California Type Evaluation Program (CTEP) certified, NEVI compliant |
| Accessibility | ADA Compliant |

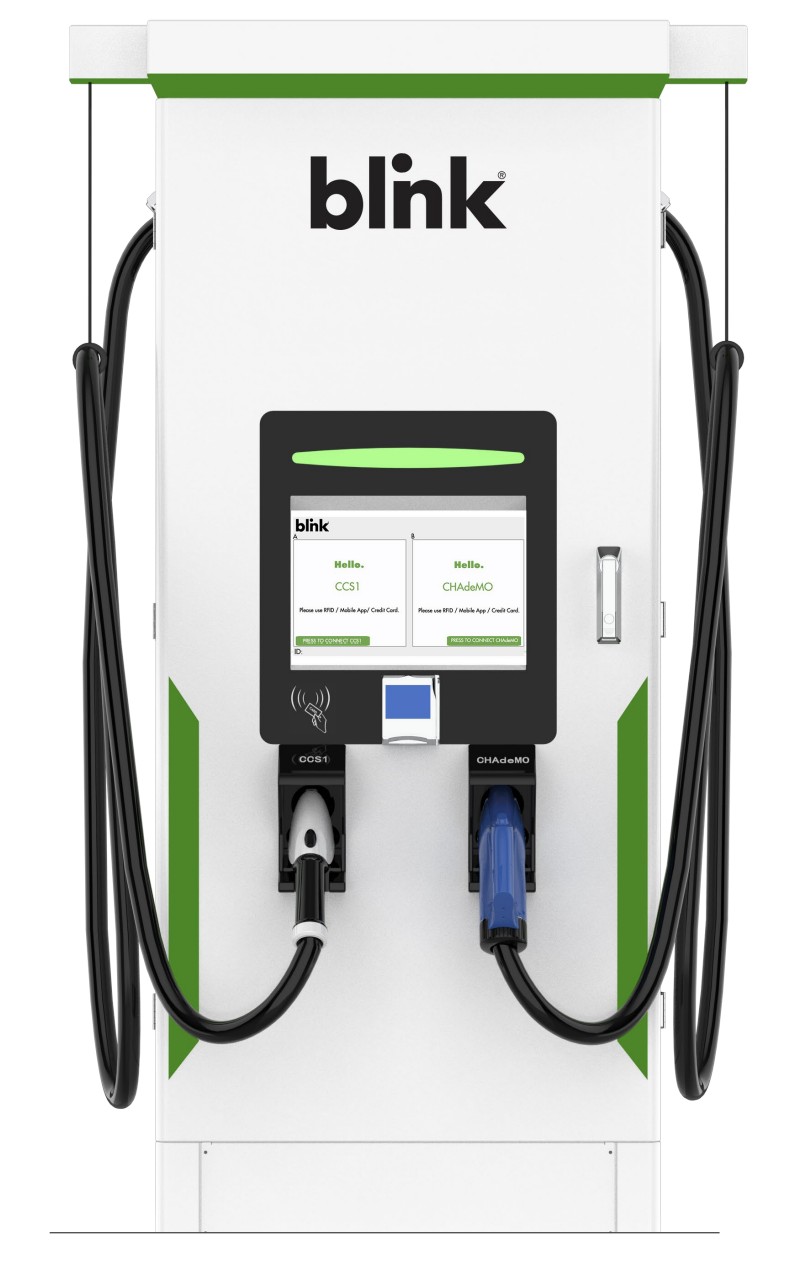

DC Fast 60kW–360kW
High Performance DC Fast Charging
With a powerful range of up to 360kW and up to 600 amps of output current, the Blink fast-charging system is one of the only units built with an all-in-one format for easy installation, deployment, and cost savings.
Blink DC 60kW–360kW
- Charges 2 vehicles simultaneously
- Available in 500, 750, and 1000 volts
- CCS1 or CHAdeMO connections
- All-in-one format for easy install mounting and deployment (power and dispenser in one unit)
- Lightweight power modules and capable of opening from all four sides for easy repair
- Fast communications via integrated LAN, 4G and Wi-Fi connectivity
- RFID reader to easily start a charge with the Blink Mobile App, Blink Card, or RFID credit cards
- 10” touch screen display
- Robust remote management tool via the Blink Network
- Redundancy power modules allows charger to operate if a power module fails
