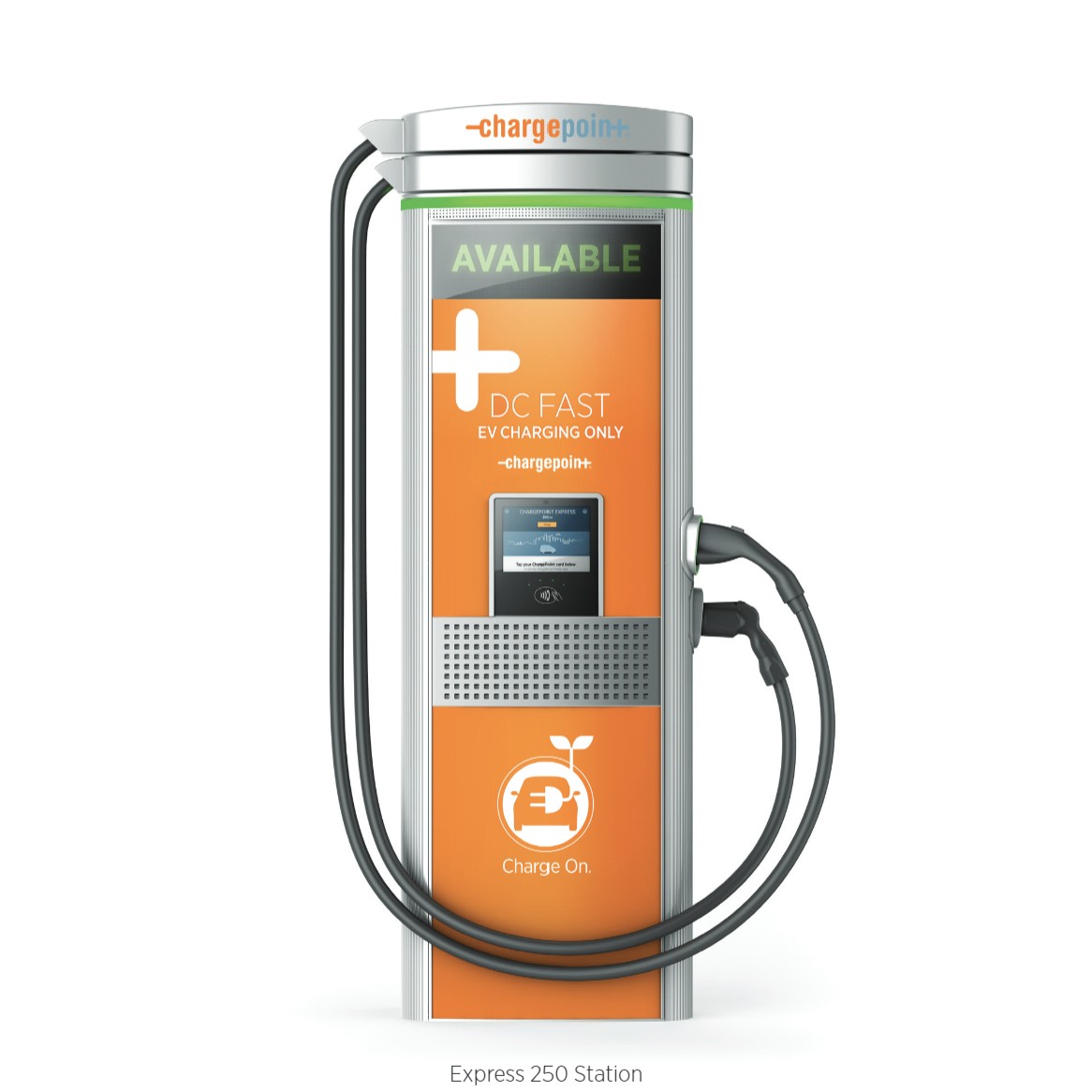

Station Electrical Input
Input Rating	380–480 VAC, 3 phase, 105–80 A, 50/60 Hz
Wiring	5 conductors (L1, L2, L3, N, Ground)

Station Electrical Output

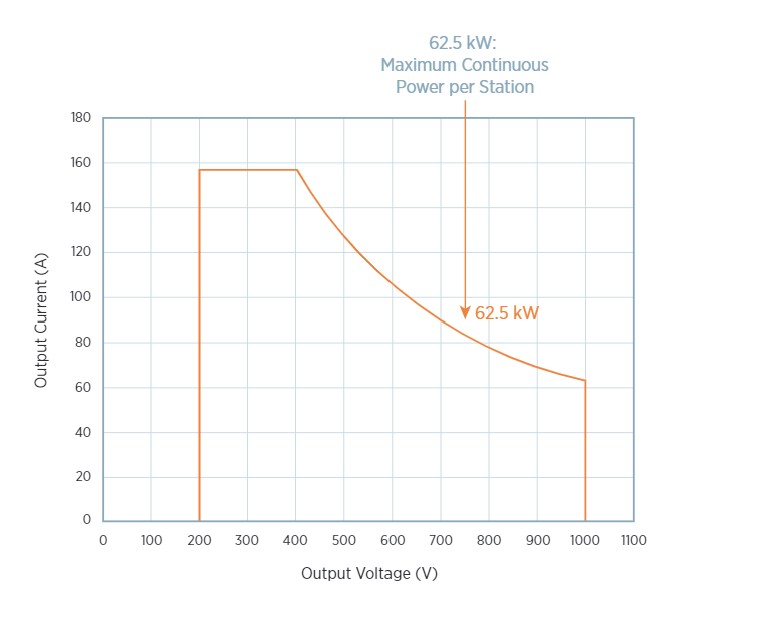

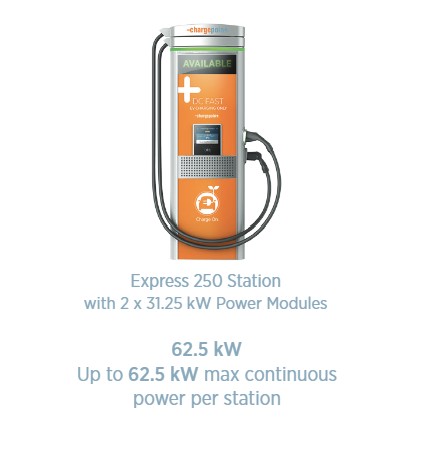

Max Output Power	62.5 kW
Output Voltage, Charging	200 V – 1000 V DC
Max Output Current	156 A
Max Modules per Station	2

Power Module

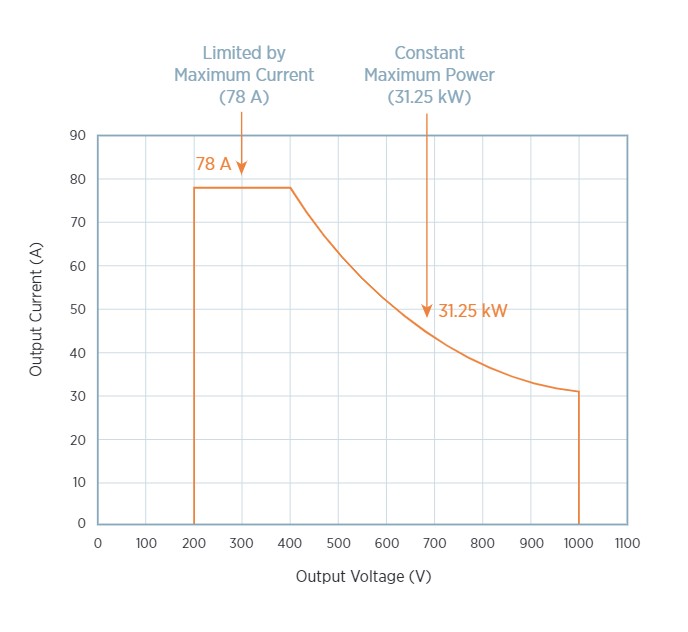

Max Output Power per Module	31.25 kW
Max Output Current per Module	78 A

Station Functional Interfaces
Max Connector Types per Station	Up to 3 different connector types per station
Supported Connector Types	CHAdeMO, CCS1 (SAE J1772™ Combo), CCS2 (IEC 61851-23), GB/T (20234.3-2011 DtC)
Cord Length	3.8 m (12.5 ft)
Driver Interaction DisplayDriver Interaction Display	Full-color 10-inch LCD display for driver interaction
Top Display	Full-color 20-inch LED display for notifications
Authentication	RFID: ISO 15693, ISO 14443, NFC Plug and Charge: IEC 15118-1 Remote: Mobile and in vehicle (if supported by vehicle)

Measurement & Connectivity Features
Power Measurement Accuracy	+/- 1% from 10% to full scale
Power Report/Store Interval	10 seconds
Driver Power Reporting	One second
Local Area Network	2.4 GHz and 5 GHz WiFi (802.11 b/g/n)
Wide Area Network	3G GSM, 3G CDMA and LTE

Energy Management Features
Dynamic Power Management	Allows a fixed maximum power output per station or lets the system dynamically manage the power distribution per station
Power Module Energy Balancing	Balances the number of hours of operation of each module and optimizes power module usage
Remote Energy Management	Supported through the ChargePoint Network API services

Safety and Operational Ratings
Vehicle Safety Communication	CHAdeMO – JEVS G104 over CAN, CCS1 – SAE J1772 over PLC and CCS2 — IEC 61851-23
Plug-out Detection	Power terminated per JEVS G104 (CHAdeMO), SAE J2931 (CCS1) and IEC 61851-23 (CCS2) specification
Station Enclosure Rating	Type 3R, IP 44
Safety Compliance	For U.S., complies with UL 2202, UL 2231-1, UL 2231-2. For Europe, complies with: IEC 62196, IEC 61851, CE marking
Station Surge Protection	Tested to IEC 6100-4-5, Level 5 (6 kV @ 3000 A). In geographic areas subject to frequent thunder storms, supplemental surge protection at the service panel is recommended.
EMC Compliance	U.S.: FCC part 15 Class A; EU: EN55011, EN55022 & IEC61000-4
Power Conversion EfficiencyPower Conversion Efficiency	96%
Power Factor	0.99
Harmonics	iTHD < 7% (Complies with IEEE 519 Requirements)iTHD < 7% (Complies with IEEE 519 Requirements)
Power Module Cooling	Liquid Cooling Technology
Operational Altitude	<2000 m (<6500 ft)
Operational High Altitude (Optional)Operational High Altitude (Optional)	<4000 m (<13000 ft) (output power derating may apply)<4000 m (<13000 ft) (output power derating may apply)
Operating Temperature	-30° C to 50° C (-22° F to 122° F)
Storage Temperature	-40° C to 50° C (-40° F to 122° F)
Operating Humidity	Up to 95% @ 50° C (122° F) non-condensing

Generic Specifications
Station Dimensions	2.23 m x 1.12 m x 0.42 m (7 ft 4 in x 3 ft 8 in x 1 ft 4 in)
Station Weight (without Modules)	250 kg (551 lb)
Power Module Dimensions	0.76 m x 0.43 m x 0.13 m (2 ft 6 in x 1 ft 5 in x 5 in)
Power Module Weight	38 kg (84 lb)

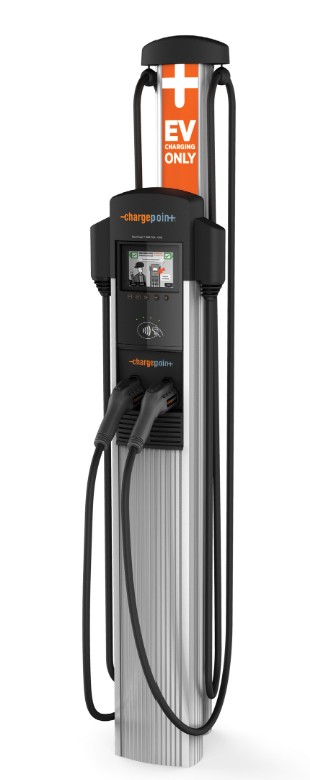

Specifications and Ordering information

Specify model number followed by the applicable code(s).
The order code sequence is: Model-Options. Software, Services
and Misc are ordered as separate line items.

Description		Order Code
Model	1830 mm (6') Single Port Bollard Mount 1830 mm (6') Dual Port Bollard Mount 1830 mm (6') Single Port Wall Mount 1830 mm (6') Dual Port Wall Mount 2440 mm (8') Dual Port Bollard Mount 2440 mm (8') Dual Port Wall Mount	CT4011 CT4021 CT4013 CT4023 CT4025 CT4027
Options	Integral Gateway Modem - USA Integral Gateway Modem - Canada	-GW1 -GW2
Misc	Power Management Kit Bollard Concrete Mounting Kit	CT4000-PMGMT CT4001-CCM

Description	Order Code
ChargePoint Commercial Service Plan	CTSW-SAS-COMM-n1
ChargePoint Service Provider Plan	CTSW-SAS-SP-n1
ChargePoint Assure	CT4000-ASSUREn
Station Activation and Configuration	CPSUPPORT-ACTIVE
ChargePoint Station Installation and Validation	CT4000-INSTALLVALID

If ordering this	the order code is
1830 mm (6') Dual Port Bollard USA Gateway Station with Concrete Mounting Kit ChargePoint Commercial Service Plan, 3 Year Subscription ChargePoint Station Installation and Validation 2 Years of Assure Coverage	CT4021-GW1 CT4001-CCM CTSW-SAS-COMM-3 CT4000-INSTALLVALID CT4000-ASSURE2
1830 mm (6') Single Port Wall Mount Station ChargePoint Commercial Service Plan, 5 Year Subscription 4 Years of Assure Coverage Station Activation and Configuration	CT4013 CTSW-SAS-COMM-5 CT4000-ASSURE4 CPSUPPORT-ACTIVE

CT4021 1830 mm (6′)
CT4025 2440 mm (8′)
Bollard

CT4023 1830 mm (6′)
CT4027 2440 mm (8′)
Wall Mount

Electrical Input	Single Port (AC Voltage 208/240V AC)			Dual Port (AC Voltage 208/240V AC)
	Input Current	Input Power Connection	Required Service Panel Breaker	Input Current	Input Power Connection	Required Service Panel Breaker
Standard	30A	One 40A branch circuit	40A dual pole (non-GFCI type)	30A x 2	Two independent 40A branch circuits	40A dual pole (non-GFCI type) x 2
Standard Power Share	n/a	n/a	n/a	32A	One 40A branch circuit	0A dual pole (non-GFCI type)
Power Select 24A	24A	One 30A branch circuit	30A dual pole (non-GFCI type)	24A x 2	Two independent 30A branch circuits	30A dual pole (non-GFCI type) x 2
Power Select 24A Power Share	n/a	n/a	n/a	24A	One 30A branch circuit	30A dual pole (non-GFCI type)
Power Select 16A	16A16A	One 20A branch circuit	20A dual pole (non-GFCI type)	16A x 2	Two independent 20A branch circuits	20A dual pole (non-GFCI type) x 2
Power Select 16A Power Share	n/a	n/a	n/a	16A	One 20A branch circuit	20A dual pole (non-GFCI type)
Service Panel GFCI	Do not provide external GFCI as it may conflict with internal GFCI (CCID)
Wiring - Standard	3-wire (L1, L2, Earth)			5-wire (L1, L1, L2, L2, Earth)
Wiring - Power Share	n/a			3-wire (L1, L2, Earth)
Station Power	8W typical (standby), 15W maximum (operation)

Electrical Output
Standard	7.2kW (240V AC @ 30A)	7.2kW (240V AC@30A) x 2
Standard Power Share	n/a	7.2kW (240V AC@30A) x 1 or 3.8kW (240V AC@16A) x 2
Power Select 24A	5.8kW (240V AC@24A)	5.8kW (240V AC@24A) x 2
Power Select 24A Power Share	n/a	5.8kW (240V AC@24A) x 1 or 2.9kW (240V AC@12A) x 2
Power Select 16A	3.8kW (240V AC@16A)	3.8kW (240V AC@16A) x 2
Power Select 24A Power Share	n/a	3.8kW (240V AC@16A) x 1 or 1.9kW (240V AC@8A) x 2

Functional Interfaces
Connector(s) Type	SAE J1772™	SAE J1772™ x 2
Cable Length - 1830 mm (6') Cable Management	5.5 m (18')	5.5 m (18') x 2
Cable Length - 2440 mm (8') Cable Management	n/a	7 m (23')
Overhead Cable Management System	Yes
LCD Display	145 mm (5.7") full color, 640x480, 30fps full motion video, active matrix, UV protected
Card Reader	ISO 15693, ISO 14443, NFC
Locking Holster	Yes	Yes x 2

Safety and Connectivity Features
Ground Fault Detection	20mA CCID with auto retry
Open Safety Ground Detection	Continuously monitors presence of safety (green wire) ground connection
Plug-Out Detection	Power terminated per SAE J1772™ specifications
Power Measurement Accuracy	+/- 2% from 2% to full scale (30A)
Power Report/Store Interval	15 minute, aligned to hour
Local Area Network	2.4 GHz Wi-Fi (802.11 b/g/n)
Wide Area Network	3G GSM, 3G CDMA

Safety and Operational Ratings
Enclosure Rating	Type 3R per UL 50E
Safety Compliance	UL listed for USA and cUL certified for Canada; complies with UL 2594, UL 2231-1, UL 2231-2, and NEC Article 625
Surge Protection	6kV @ 3000A. In geographic areas subject to frequent thunder storms, supplemental surge protection at the service panel is recommended.
EMC Compliance	FCC Part 15 Class A
Operating Temperature	-30°C to +50°C (-22°F to 122°F)
Storage Temperature	-30°C to +60°C (-22°F to 140°F)
Non-Operating Temperature	-40°C to +60°C (-40°F to 140°F)
Operating Humidity	Up to 85% @ +50°C (122°F) non-condensing
Non-Operating Humidity	Up to 95% @ +50°C (122°F) non-condensing
Terminal Block Temperature Rating	105°C (221°F)
Charging Stations per 802.11 Radio Group	Maximum of 10. Each station must be located within 45m (150') “line of sight” of a gateway station.
